AMATEUR MOVIE PROJECTORS
EQUIPMENT & SUPPLIES - PROJECTOR BULBS
INSTRUCTION BOOKS

These pages updated October 19, 2024

Bell & Howell - Eumig - Elmo - Sankyo - Kodak - Sears
Click the links below to find the movie projector or equipment you need.

8mm Projectors
Super-8 Projectors
16mm Projectors
Movie Projector Instruction & Service Books
Movie Supplies

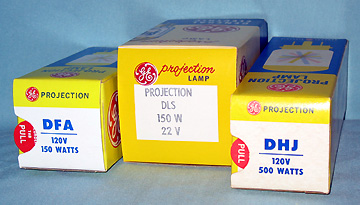

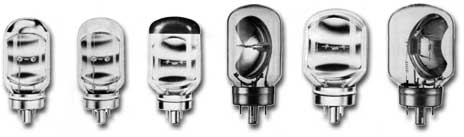

Projector Bulbs / Lamps



Please Note: I Do Not Take In Repair Jobs. I Only Service The Projectors I Refurbish And Sell Myself.

See descriptions and additional links to these pages below.


TIPS FOR TROUBLE FREE PROJECTION

Some Dual 8mm projectors, that can run both 8mm and super-8 / single-8 film, can sacrifice performance and film safety. For this reason I have never cared for most of them and will usually not have any for sale here unless they are models I am able to refurbish to running good and safely with the film. My only exception will be some of the Elmo silent and Eumig sound or early silent models because they require separate sets of sprockets and film gates for each format.

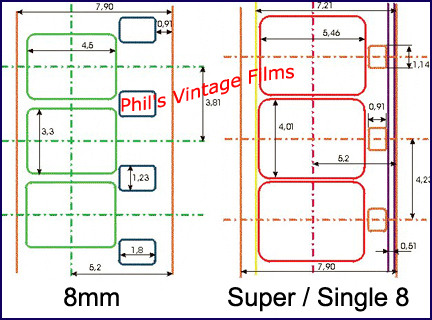

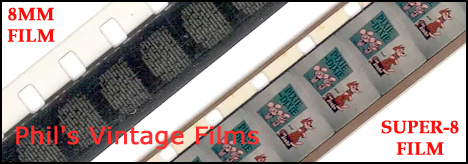

Here is the difference between 8mm and super-8 film.




About the confusion caused by "Single-8" and "reel adapters":


8mm film started being called standard or regular 8mm after Super-8 film was introduced in 1965. Single-8 is Fuji's name for their Super-8 film that was mylar based and in a different style cartridge from Super-8 for camera use. That is why they had to give it a different name. All Super-8 projectors will run Single-8 film. Super-8 and single-8 are both the same film format. A projector labeled Super/Single 8mm will not run the older 8mm film format.


Reel adapters you have heard about are for allowing super-8 reels, with super-8 or 8mm film on them, to be put on a 1/4" 8mm spindle on a dual-8 model projector that is designed to run both film formats; NOT to be used on just any 8mm projector so you can try to run super-8 film on it. You cannot run super-8 film on a regular 8mm projector, regardless of which kind of reel it is on.

I have dual-8 projector spindle adapters listed on my MOVIE SUPPLIES page.

Items are removed and added to these pages regularly, so please check back often and be sure to refresh/reload the page so you get the latest updates!
Thank you for looking!



MOVIE PROJECTOR INSTRUCTION & SERVICE BOOKS


Clean, excellent quality copies made from original instruction manuals. A number in brackets ( ) indicates the quantity I have.
All books below are the instruction book, unless noted as being repair or service manuals.

  • KALART/VICTOR SERIES NINETY 16MM PROJECTOR SERVICE MANUAL - 8.5x11" 65 page service/assembly manual for the Series 90 16mm projectors - $25
  • EIKI RST/RT/RM SERIES 16MM PROJECTORS INSTRUCTIONS & SERVICE MANUALS - 1977 Eiki instruction book, parts and repair manuals for the RST/RT/RM model 16mm projectors. All books are Mint condition and were assembled for the Eiki service seminars in 1977 - $39
  • KODAK SOUND-8 8MM SOUND PROJECTOR (6) - Complete 20 page instruction book in the original color - $20
  • KODAK INSTAMATIC M100/M100A SUPER-8 SOUND PROJECTOR (4) - 20 pages - $12
  • KODAK HI-MAT 8MM PROJECTOR (10) - 12 pages - $15
  • SEARS SOUNDSTAGE 8MM PROJECTOR - 12 pages - $15
  • SEARS SOUNDSTAGE II 8MM PROJECTOR - 12 pages - $15
  • EUMIG MARK-S 8MM SOUND PROJECTOR (2) - 32 pages, 5"X7" - $20 OUT
  • EUMIG MARK-S SUPER-8 SOUND PROJECTOR (3) - 32 pages, 5"X7" - $20
  • EUMIG MARK-S 709 SUPER-8 SOUND PROJECTOR (8) - 1970. 5"X8", 16 pages - $24
  • ELMO 16-CL 16MM SOUND PROJECTOR (16) - Can also be used with the Kodak CT1000 model. Complete 28 page instruction book - $20
  • ELMO ST-600 (Black) SUPER-8 2-TRACK SOUND PROJECTOR (10) - Complete 36 page instruction book - $20
  • ELMO ST-600D (Silver) SUPER-8 2-TRACK SOUND PROJECTOR (8) - Complete 46 page instruction book - $20
  • ELMO GS-1200 SUPER-8 STEREO SOUND PROJECTOR (10) - Complete 70 page instruction book - $24
  • ELMO ST-1200D SUPER-8 SOUND PROJECTOR (8) - Complete 40 page instruction book - $20

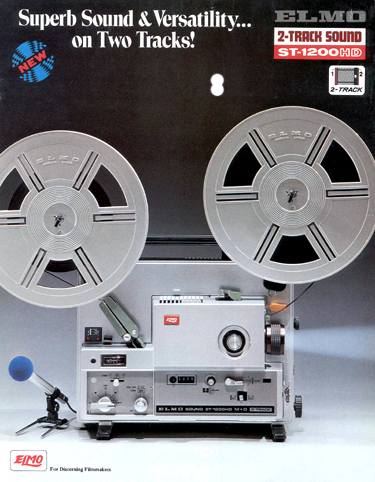

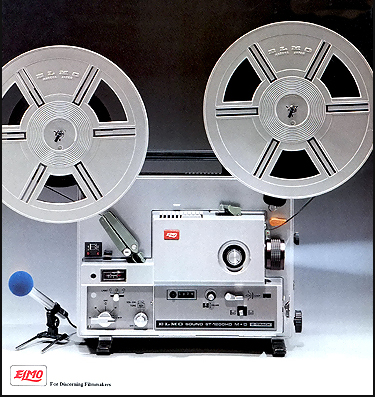

  • ELMO ST-1200HD SUPER-8 2-TRACK SOUND PROJECTOR (10) - Complete 60 page instruction book - $24
  • BELL & HOWELL DCM SUPER-8 SOUND PROJECTOR (OUT) - 12 pages, 8.5"x11". With clear plastic cover and spine - $20
  • BELL & HOWELL DCT SUPER-8 SOUND PROJECTOR (OUT) - 12 pages, 8.5"x11". With clear plastic cover and spine - $20
  • BELL & HOWELL 33SR SUPER-8 SOUND PROJECTOR (10) - Complete 36 page instruction book, English and 3 other languages - $10

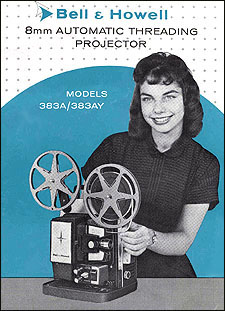

  • BELL & HOWELL 383A/383AY 8MM PROJECTOR - (5) - 12 pages, 5.5"x8.5" - $15
  • BELL & HOWELL 370, 363, 255 8MM PROJECTOR (7) - 12 pages, 5.5"x8.5" - $15
  • BELL & HOWELL DIRECTOR 465 8MM PROJECTOR (8) - 22 pages, 5"x7" - $18
  • BELL & HOWELL 482 / 483A SUPER-8 PROJECTOR (7) - 5"x7", 17 pages - $18
  • BELL & HOWELL 173/DIPLOMAT/TIME-MOTION STUDY 16MM SILENT PROJECTOR (7) - Complete 16 page instruction book for the 173 style 16mm projectors - $20
  • BELL & HOWELL 273 16MM SILENT PROJECTOR (6) - Complete 12 page instruction book covers all Diplomat models including the "Time and Motion Study" model - $15
  • GAF 2000 and 3000 SUPER-8 SOUND PROJECTOR (8) - 24 pages, 5"x7" - $15
  • GAF 3100S SUPER-8 SOUND PROJECTOR (12) - 24 pages, 5"x7" - $15
  • SEARS 9288 & 9289 8MM PROJECTOR (2) - 16 pages, 5"x7" - $15
  • SANKYO SOUND-600 SUPER-8 PROJECTOR (12) - 22 pages - $18
  • SANKYO SOUND-700 SUPER-8 PROJECTOR (10) - 22 pages - $24
  • SANKYO SOUND 502-702 SUPER-8 PROJECTOR (2) - 30 pages - $24
  • SANKYO SOUND-762 SUPER-8 PROJECTOR (7) - 30 pages - $24
  • REVERE 718 AUTOMATIC 8MM PROJECTOR (1) - 6 pages, 8.5"X11" - $12
  • SANKYO STEREO-800 - Original Service, Repair Manual and Parts List in Mint condition - $29

ORIGINAL INSTRUCTION, PARTS & SERVICE BOOKS
Only one of each unless noted. All are instruction books, unless noted as a repair or parts manual.

  • AMPRO STYLIST Model 568 16MM SOUND PROJECTOR - Original 20 page instruction manual from 1958 - $24
  • BOLEX PAILLARD 8MM CINE PROJECTOR - Original 20 page instruction manual from 1950's. 4.5"x7", Excellent condition - $29
  • VICTOR ESCORT 16MM PROJECTOR - 1940's book in Mint condition. 20 pages, 5.5"x8.5" - $29
  • KODAK CHEVRON 8, MODEL 10 8MM PROJECTOR - 1963 book in Near Mint condition. 8.5"x5", 12 pages - $20
  • KODAK HI-MAT 8MM PROJECTOR (2) - 12 pages - $20
  • KODAK INSTAMATIC M85 DUAL 8MM PROJECTOR - 1972 book in Near Mint condition. 8.5"x6", 16 pages - $20
  • KODAK INSTAMATIC M100A SUPER-8 SOUND PROJECTOR - 1970 instruction book in Like New condition. 8.5"x11", 8 pages - $25
  • KODAK INSTAMATIC M100A SUPER-8 SOUND PROJECTOR - 1967 Parts list in Near Mint condition. 8.5"x11", 32 pages - $25
  • KODAK EKTASOUND 235B SUPER-8 SOUND PROJECTOR - 1975 book in Near Mint condition with inserts. 6"x8.5", 18 pages - $24
  • KODAK PAGEANT AV-126-TR 16MM SOUND PROJECTOR - 1975 book in Excellent condition. 8.5"x11", 20 pages - $24
  • ARGUS SHOWMASTER 8MM PROJECTOR - 1960's book in Like New condition. 6"x4.5", 14 pages - $18
  • KEYSTONE A-20 16MM PROJECTOR - 1940's book in Like New condition. 24 pages, 4"x6" - $24
  • KALART/VICTOR SERIES 90 16MM PROJECTORS - 1985 book in Mint condition. 8.5"x5.5", 22 pages - $24
  • BELL & HOWELL 370, 363, 255 8MM PROJECTOR - 1970's book in Like New condition. 8"x5.5", 17 pages - $29
  • BELL & HOWELL 370 8MM PROJECTOR SERVICE & PARTS MANUAL - Revised December, 1960 (older design). Pages in excellent+ condition. 8"x5x11"", 24 heavy pages - $29
  • BELL & HOWELL 488Z SUPER-8 SOUND PROJECTOR (EUMIG 712) - 1970's book in Like New condition. 8.5"x5.5", 17 pages - $24
  • BELL & HOWELL 482 SUPER-8 PROJECTOR - 1970's book in Like New condition. 5"x7", 17 pages - $25
  • BELL & HOWELL SPECIALIST 550 16MM PROJECTOR - 1970's book in Like New condition. 8.5"X5.5", 30 pages - $25
  • ELMO ST-800 SUPER-8 SOUND PROJECTOR (German) - Oversize 44 page instruction book in German only. New condition - $24
  • ELMO GS-800 SUPER-8 SOUND PROJECTOR - 36 page Parts list with exploaded views. Like New, first page damaged - $25
  • EUMIG 802/802D SUPER-8 SOUND PROJECTOR - 1975. 6"X8", 26 pages. Excellent condition - $20
  • EUMIG P8 AUTOMATIC NOVO 8MM PROJECTOR - 1964. 6"X8", 20 pages. Excellent condition - $18



PROJECTORS & SUPPLIES

I do not take in repair jobs. I just service the projectors I refurbish and sell myself.

Click the links or images below to go to the listings.

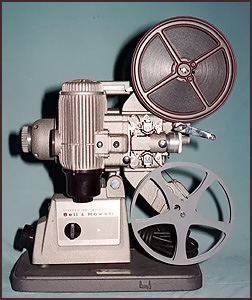

  • 8MM MOVIE PROJECTORS - A selection of excellent precision standard 8mm silent and sound Bell & Howell, Sears, Kodak and Eumig 8mm sound and silent projectors are listed on a regular basis.
  • SUPER 8MM MOVIE PROJECTORS - Elmo, Sankyo, Bell & Howell, Minolta and Yashica. A great selection of sound and silent projectors come and go on a regular basis.
  • 16MM MOVIE PROJECTORS - Bell & Howell silent projectors, Elmo 16CL and Kodak CT-1000 sound projectors and lenses.
  • MOVIE SUPPLIES - Projector Belts (limited types), Projector Lenses, Movie Film Leader ( includes 8mm, super-8 and 16mm leader film ) , Hand Rewinds, Silicone Polishing Cloths, Movie Reels and  Kodak Presstape splicing tape for 8mm, super-8 and 16mm film.

Tips For Trouble Free Film Projection
Many of the films offered on this site are Like New or in Mint condition. As such, especially with black and white film, they can be very dry. If they are not lubricated, depending on your projector, they can not slip properly when going through the gate and may clatter or the image may even jitter. All films, especially new condition or green prints, need to be lubricated for optimum performance. It is best to use a cleaner made for conditioning and lubricating film.

Go to FILM-TECH to buy FilmGuard to clean, lubricate and protect your film prints. Apply the cleaner with a 100% cotton cloth like an old T-shirt, and then wipe off the dirt and polish off the cleaner using a dry cloth. (You can use GooGone as a substitute film cleaner, but it does not add any lubrication). With FilmGuard you don't have to completely have the cleaner dried off, but after the film cleaner has completely evaporated, it would also be a good idea to polish and lubricate the film with a silicone treated cloth.

Dirt can build up on the guide rails that can also cause this problem. You must always keep the film gate and pressure pad of your projector clean and polished. I clean my film gates often. I moisten a Q-tip with FilmGuard or alcohol to scrub off any hard dirt on the rails. It's always a good idea to add extra leader to the beginning of each reel also. That protects the film during threading and allows you to use a permanent marker to label it.


8mm Projectors
Super 8mm Projectors
16mm Projectors

Movie Supplies
Projector Bulbs / Lamps

Click HERE to return to my HOME page.


Any item or film that is in RED TEXT means that it is on hold, but I haven't yet received the order. This means when I receive the order I will remove the item, or if I do not get the order I will leave it listed and change the red text to black.

Go to ORDERING INFORMATION if you are ready to place an order or want to call me or send an Email.
